This isnt just an app with diagrams and information to read, this is a fully interactive transformer lab that can fit in your pocket.
Whether you are brand new to the trade, just learning about Transformers, or a seasoned Lineman, this app can help you learn more about transformers.
From transformer banks, to basic transformer troubleshooting and even basic transformer paralleling, you can learn a ton with this app.

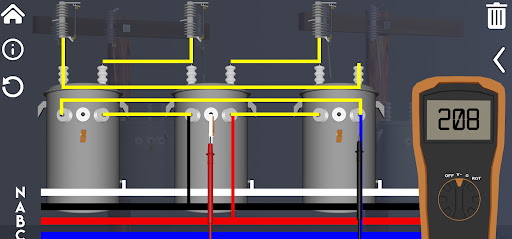

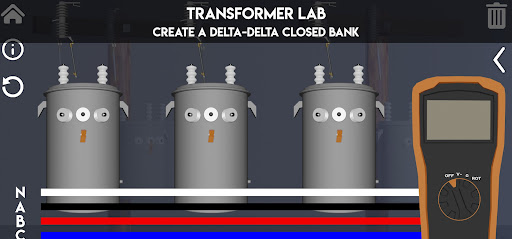

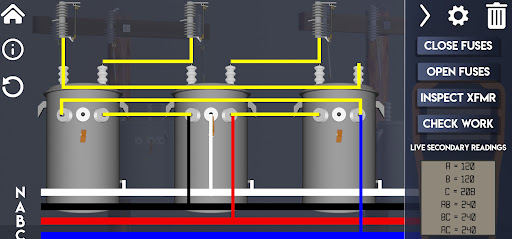

In this app there is a functioning volt meter, ohm meter, and even rotation meter.On the slide-out menu you can see your voltages as you make changes to the banks in live-time.Pop the lid to transformers and view the secondary windings and blowing fuses under certain conditions are just a few of the many amazing features!Build a custom quiz for you and your apprentices!Current Labs in this app:-Single Phase-Single Bushing TopsideDual Bushing Topside-Three Phase-Delta Delta ClosedDelta Wye ClosedWye Delta ClosedWye Wye ClosedDelta Delta OpenWye Delta Open-Misc-Paralleling4th CutoutTroubleshootingTutorial-Advanced-Straight 480240/480277/480Corner Grounded 240 or 480Wye Wye 5 Wire (120/240 & 120/208)-Quiz-Test your transformer wiring knowledge by completing a predetermined assortment of labs at random.
Blowing fuses and attempting to Check Work subtract from your overall score out of 100.-Advanced Quiz-Test your overall transformer knowledge by completing a series of random quizzes where you receive basic job-site information and have to choose the correct transformer nameplate and secondary coil configuration.
You will then have the option to wire up the corresponding bank.
